By Barry Brisky - Published September 23, 2026 - Updated September 23, 2026
TL;DR
Installing a 14.5x19x1 furnace air filter takes a few minutes: turn the system off, remove the old filter, and slide the new one in with the airflow arrow pointing toward the air handler, away from the room. Then check all four edges for gaps, because air that slips around the frame skips filtration entirely.
After years of filter swaps, I judge a 14.5x19x1 install mostly by one test: whether air can sneak around the frame. Insert the filter so its printed arrow follows the airflow into the ductwork, and close the cover only once the frame sits flat.
Key Takeaways
Arrow direction: The arrow on a 14.5x19x1 filter points the way air travels, toward the blower and air handler and away from the return grille and living space.
Nominal vs. actual: 14.5x19x1 is a nominal size. The actual depth is about 3/4 inch, so the slot, not the old label, has the final word on fit.
Gaps defeat filtration: Space around the frame lets unfiltered air bypass the media, which cancels out the benefit of any MERV rating.
Florida schedule: ENERGY STAR recommends checking the filter monthly and changing it at least every 3 months, which matters in Boca Raton’s long cooling season.
What Size Is a 14.5x19x1 Filter, Really?
A 14.5x19x1 air filter is labeled by its nominal size, the rounded number printed on the frame. Here the width and height match the label, but the true depth is about three-quarters of an inch. That surprises many buyers, but it is normal for one-inch residential filters. My rule: trust the slot, not the label.
For reference, one U.S. filter manufacturer’s size listing that shows the actual 14.5 x 19 x 0.75 inch dimensions lists this filter in MERV 8, MERV 11, and MERV 13 pleated versions (plus a Canadian French-language listing).
Why this size is unforgiving: many filters run undersize. A 14x20x1, for example, actually measures 13.5 x 19.5 x 0.75 inches. The 14.5x19x1 keeps its full 14.5 x 19 inch face, so near-match sizes leave gaps or jam. If the old filter is missing, measure the opening: roughly 14.5 x 19 inches confirms this size.
Where Is the 14.5x19x1 Furnace Filter Slot in a Boca Raton Home?
In many South Florida homes, the equipment people call a furnace is an air handler with electric heat strips. That puts the 14.5x19x1 furnace filter slot in one of two places: behind a return air grille in a hallway wall or ceiling, or in a slide-in slot at the base of the air handler in a closet, garage, or attic. In the Boca Raton condos and single-story homes I have worked in, the ceiling grille is the most common setup.
Look for a hinged grille with latches or thumbscrews, or a narrow cover on the air handler marked FILTER. For other sizes, see this furnace filter replacement checklist.
How Do You Install a 14.5x19x1 Filter Step by Step?
Here are the steps to replace a 14.5x19x1 furnace filter, in the order I recommend. Most homes need no tools, and the only variable is where the arrow points.
Turn the system off at the thermostat. This keeps loosened dust out of the return.
Open the cover and note the old arrow. A phone photo saves guesswork later.
Remove the old filter slowly. Keep the dirty face up and bag it for disposal or recycling right away.
Check the new filter. Confirm the label reads 14.5x19x1 and the MERV rating suits your system. The EPA suggests choosing MERV 13 or the highest rating your system fan and filter slot can accommodate. Write today’s date on the frame edge.
Insert it arrow-first toward the air handler. Press lightly around the frame so it seats flat against the slot or grille track on all four sides.
Close up and restart. Latch the cover, turn the system back on, and confirm steady airflow at a supply vent.
Which Way Does a 14.5x19x1 Filter Go?
The 14.5x19x1 filter airflow direction always follows the air: from the return, through the filter, toward the blower. The 14.5x19x1 filter arrow direction should never point back into the room. Three common setups:

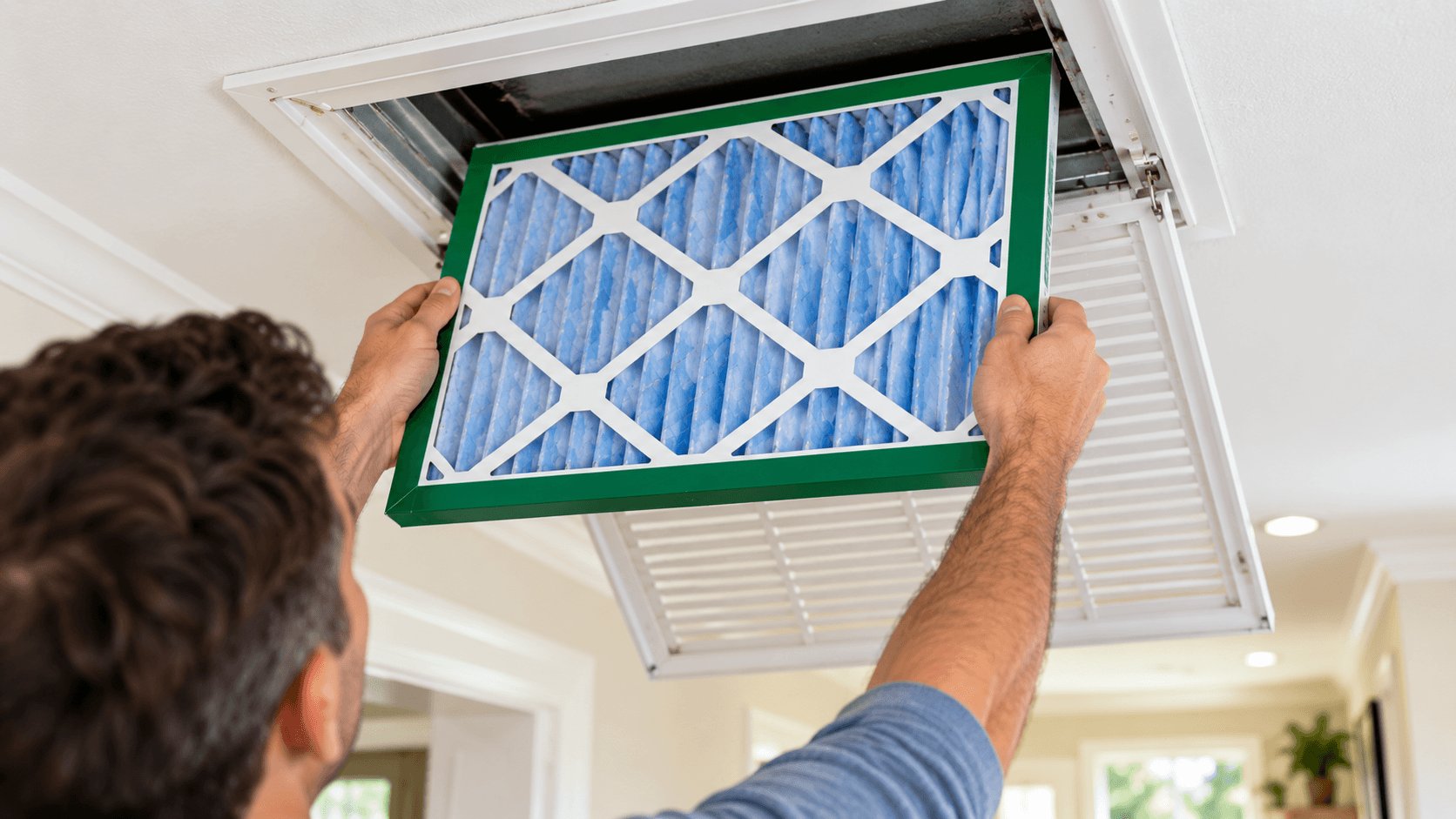

Ceiling return grille: The arrow points up, into the ceiling.
Wall return grille: The arrow points into the wall, away from the hallway.
Air handler slot: The arrow points toward the cabinet: up in an upflow closet unit, down in a downflow unit, and toward the unit in a horizontal attic installation.
Direction matters because many pleated filters have a support grid or wire backing on the downstream face. Installed backward, the unsupported side takes the airflow load, and the pleats can flex or pull away from the frame as dust builds up.
Overhead returns are where I see the most backward filters: the arrow must point up into the ceiling, which feels wrong when you are standing underneath it.
How Do You Check for Gaps Around the Frame?
A gap check confirms that air moves through the filter media rather than around it. ASHRAE filtration experts note that air slipping around an unsealed filter never gets cleaned. With the cover open, look along all four edges. If you can see the metal track or slip a fingertip between the frame and the housing, air is bypassing the filter.

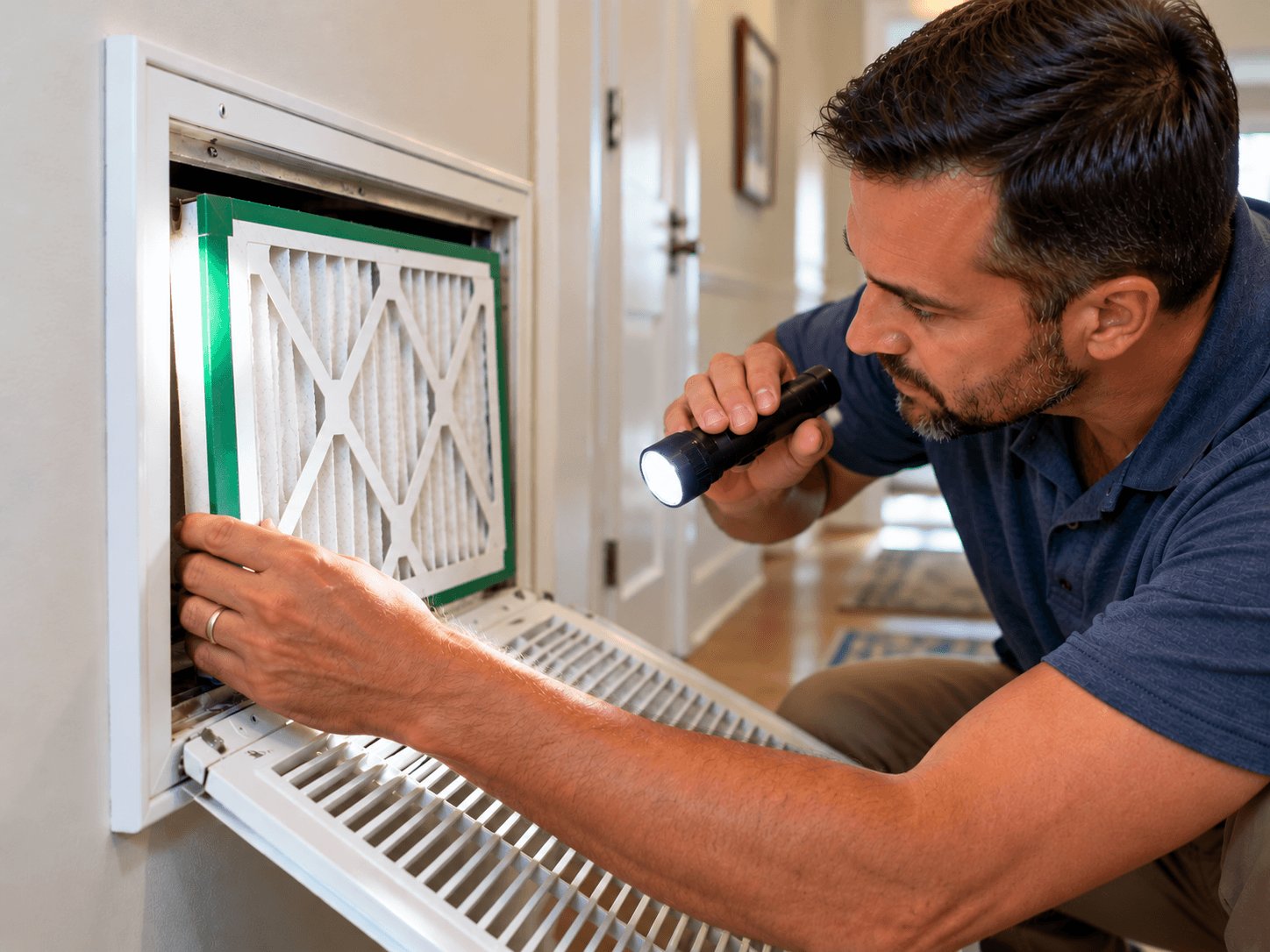

Use a flashlight: Run the beam along the edges from the room side. Light leaking around the frame marks a bypass path.
Watch for bowing: A frame that bends or needs force to close is too large for the opening. Remove it rather than crushing it into place.
Check the cover: It should latch flat. One that sits proud of the wall signals a misaligned filter.
Leave sealing to a pro: If the slot itself is oversized or damaged, a licensed HVAC contractor can add a gasket or correct the track rather than taping the frame.
The flashlight check is the step I never skip, because a filter can look seated from straight on and still leave a gap along the hinge side of a grille.
Essential Resources: 7 Trusted Guides for Your 14.5x19x1 Air Filter
1. Confirm Your Exact Size and MERV Options Before You Buy
This 14.5x19x1 size listing confirms the actual 14.5 x 19 x 0.75 inch dimensions and lists MERV 8, 11, and 13 pleated versions/
2. Choose a MERV Rating Your System Can Handle
ASHRAE’s Technical FAQ on residential filtration sets MERV 6 as the minimum for homes and explains why any upgrade should respect your equipment’s airflow limits.
3. Install and Maintain Filters the Way Pros Do
The National Air Filtration Association’s residential guideline, updated in 2026, lays out best practices for selecting, installing, and maintaining home filters.
4. Stay on Schedule With a Monthly Filter Check
ENERGY STAR’s maintenance checklist pairs a monthly filter inspection you can handle with the seasonal checks a contractor should complete.
5. Keep Humidity in Check for Healthier Indoor Air
The American Lung Association recommends keeping indoor humidity under 50 percent, a practical South Florida target.
6. Build Filter Changes Into Seasonal Home Care
HUD’s Healthy Homes Maintenance Checklist folds central air filter changes into a seasonal home maintenance routine.
7. Get Local Indoor Air Help in Palm Beach County
The Florida Department of Health’s Indoor Air Program publishes statewide guidance and county contacts, including Palm Beach County.
Expert Insight
“In my experience, most dust complaints I trace back to a one-inch return come from bypass, not the filter itself: the filter reads the right size, but the grille track is loose enough that air takes the easy path around the frame.” - Barry Brisky
Supporting Statistics
A 10 mm gap can let up to 35% of airflow skip the filter.
That gap is about 3/8 inch.
It can drop a MERV 11 filter to MERV 8 performance.
Source: Ward and Siegel bypass study, California Energy Commission docket
Clean filters can cut AC energy use by 5 to 15 percent.
The savings come from routine replacement or cleaning.
Source: U.S. Department of Energy
94% of homes in the hot-humid region use air conditioning.
The region includes South Florida.
Cooling is 27% of home energy spending there.
Final Thoughts and Opinion: Fit Matters More Than MERV
A correct 14.5x19x1 install comes down to three checks:
Exact size.
Arrow toward the air handler.
Frame sealed on every side.
My opinion: fit beats the MERV number. One U.S. filter manufacturer says the same on its MERV 8 size page: the right fit “is just as important as the MERV rating.”
A snug MERV 8 can match a loose MERV 11.
Seal the frame first, then upgrade.
I check edges before the label on every swap. With Boca Raton systems running year-round, that habit pays off.
Next Steps
Today:
Check the old filter’s size label and arrow.
Measure the slot for a 14.5 x 19 x 0.75 inch filter.
Install with the arrow toward the air handler.
Run the flashlight gap check.
Ongoing:
Check monthly. Replace at least every 3 months.
Book annual service. Verify the contractor’s license with the Florida DBPR first.
Frequently Asked Questions
Which Way Does a 14.5x19x1 Filter Go?
A 14.5x19x1 filter’s arrow points toward the air handler, away from the room: up in a ceiling grille, into the wall in a wall grille, and toward the cabinet in an air handler slot.
What If My 14.5x19x1 Filter Has No Arrow?
On a 14.5x19x1 filter with no arrow, face the side with wire mesh, a cardboard grid, or other support backing toward the air handler. If both faces look identical, check the packaging, since some work either way.
Can I Use a 14x20x1 Filter Instead of a 14.5x19x1?
No. A 20-inch filter is too long for a 19-inch opening, and a 14-inch width leaves open space along one edge for air to bypass. A 15x19x1 is too wide as well. Match the nominal size on the old filter, or measure the slot and buy the exact 14.5x19x1 size in store or online.
How Often Should I Replace a 14.5x19x1 Filter in Boca Raton?
ENERGY STAR recommends checking monthly and replacing at least every 3 months. With year-round cooling, monthly filter checks in Boca Raton matter, and homes with pets, allergies, smoke, or nearby construction may need changes every 1 to 2 months.
Is a 14.5x19x1 Filter Really 1 Inch Thick?
No. A 14.5x19x1 filter is actually about 3/4 inch deep, the standard for one-inch slots. Deeper slots take 2-inch filters such as 14x22x2, 12x24x2, or 14x36x2.
Install Your 14.5x19x1 Filter the Right Way Every Time
A 14.5x19x1 filter only protects your air and your equipment when it fits the slot and points toward the air handler. Put a monthly look at the return grille on your calendar, and each change will take just a few minutes.
Glossary
Nominal size: The rounded dimensions printed on a filter frame, such as 14.5x19x1 or 10x30x1. Actual dimensions often run slightly smaller.
Airflow arrow: The arrow printed on a filter frame showing which way air should pass through the media.
MERV: Minimum Efficiency Reporting Value, a rating scale based on an ASHRAE test method that reports how well a filter captures particles between 0.3 and 10 microns.
Filter bypass: Air that flows around a filter’s frame instead of through its media, usually through gaps between the frame and the slot.
Air handler: The indoor HVAC cabinet that houses the blower and evaporator coil, not to be confused with an industrial electric arc furnace.
